Deploy Complex Application DC and Vehicle

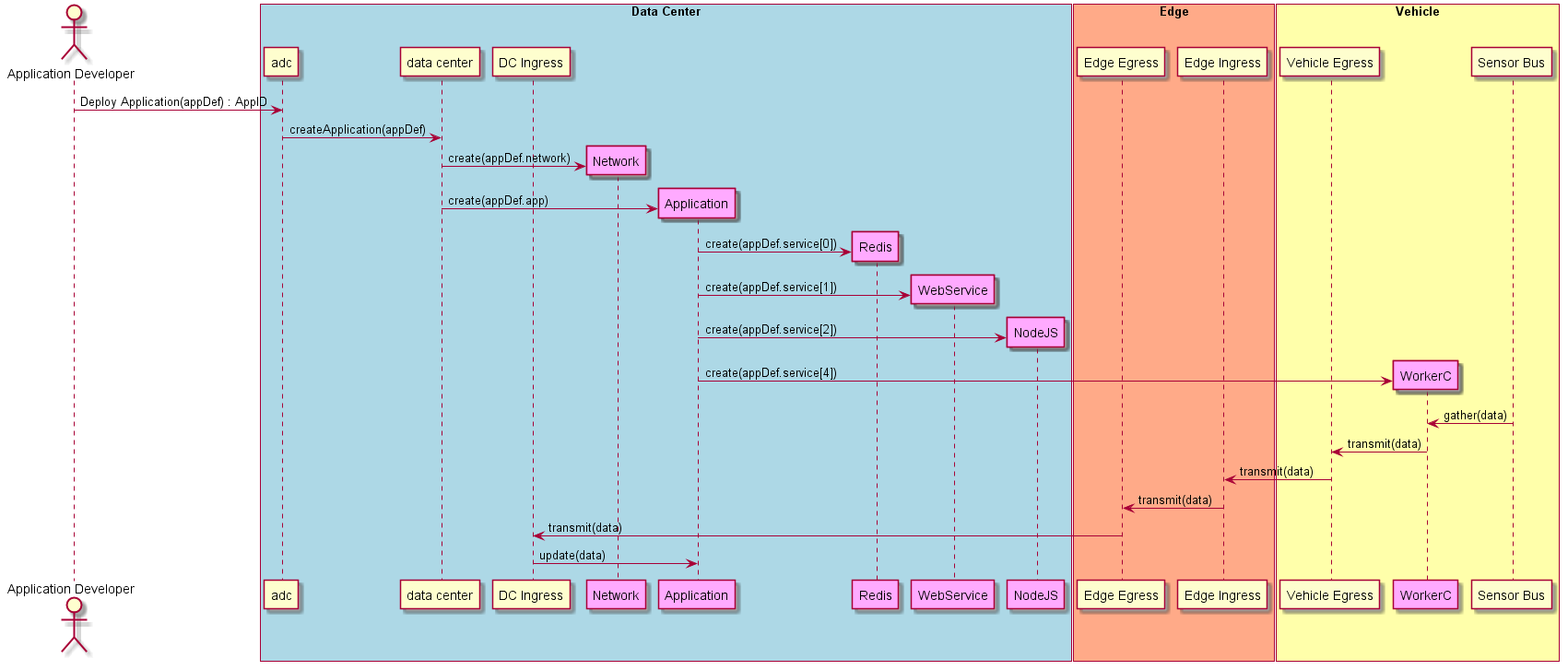

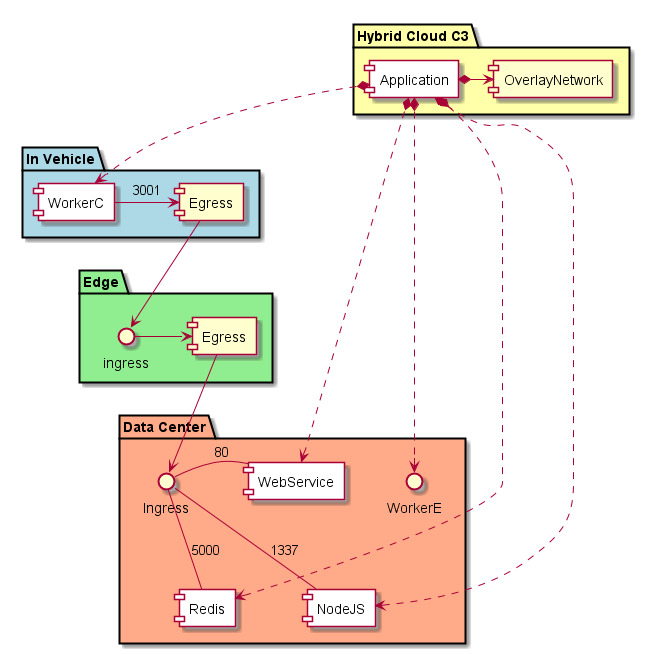

An application can be complex and and have services running in the Data Center and in Vehicle. In this example an application has several services running in the data center and one service running and one running in the vehicle. Note that there can be several different vehicles, but the diagram shows one for simplicity.

An application definition has information about the application and possible location of where to place the services that make up the application. Ultimately the decision on where to place the services of the application is the responsibility of the Common Cloud Core.
